21.5 Capacitive Touch Screen

Category: 21.5 inch capacitive touch screen
Touch screen Structure:COB
Touch screen Model: RXC-GG21503GB28
IC: ILI2511
Interface: USB
Resolution: 1920X1200
Brand: RX
Type: G+G
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXC-GG21503GB28

  • Reshine Display

A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.


Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.











Hot tags:21.5 capacitive touch screen, 21.5 projected capacitive touch screen, 21.5 large capacitive touch screen, 21.5 usb capacitive touch screen, 21.5 inch pcap touch screen kiosk, touch screen display 21.5 inch, 21.5 medical touch screen monitor, large capacitive touch screen, 21.5 inch touch screen, iphone touch screen capacitive, china, customized, suppliers, factory, manufacturers

Category: 21.5 inch capacitive touch screen

Touch screen Structure:COB

Touch screen Model: RXC-GG21503GB28

IC: ILI2511

Interface: USB

Resolution: 1920X1200

Brand: RX

Type: G+G

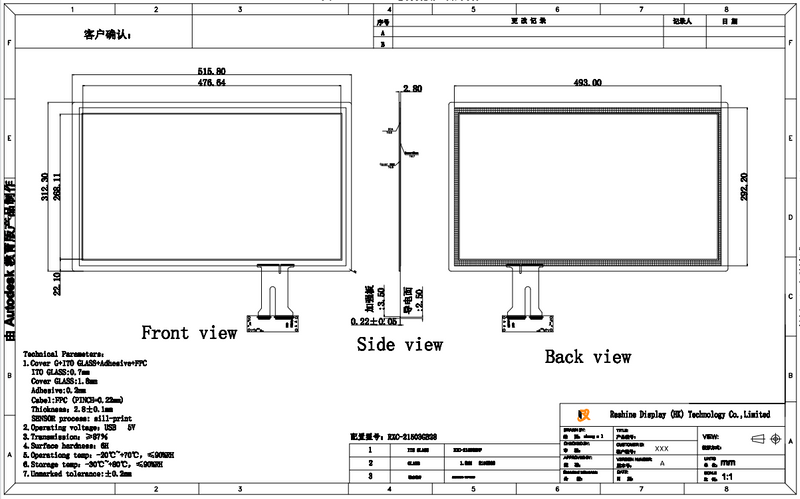

Dimensions: 515.8*312.3(±0.2)

Visual area: 476.64*268.11(±0.2)

Working temperature and humidity range: -20ºC~+70ºC

Storage temperature and humidity range: -30ºC~+80ºC

Transparency: ≥87%

Surface hardness: 6H

Voltage:5.0V

Applications: Touch screens for car navigation, smart home, medical equipment, smart education, etc.


1VDD
2D-
3D+
4GND
