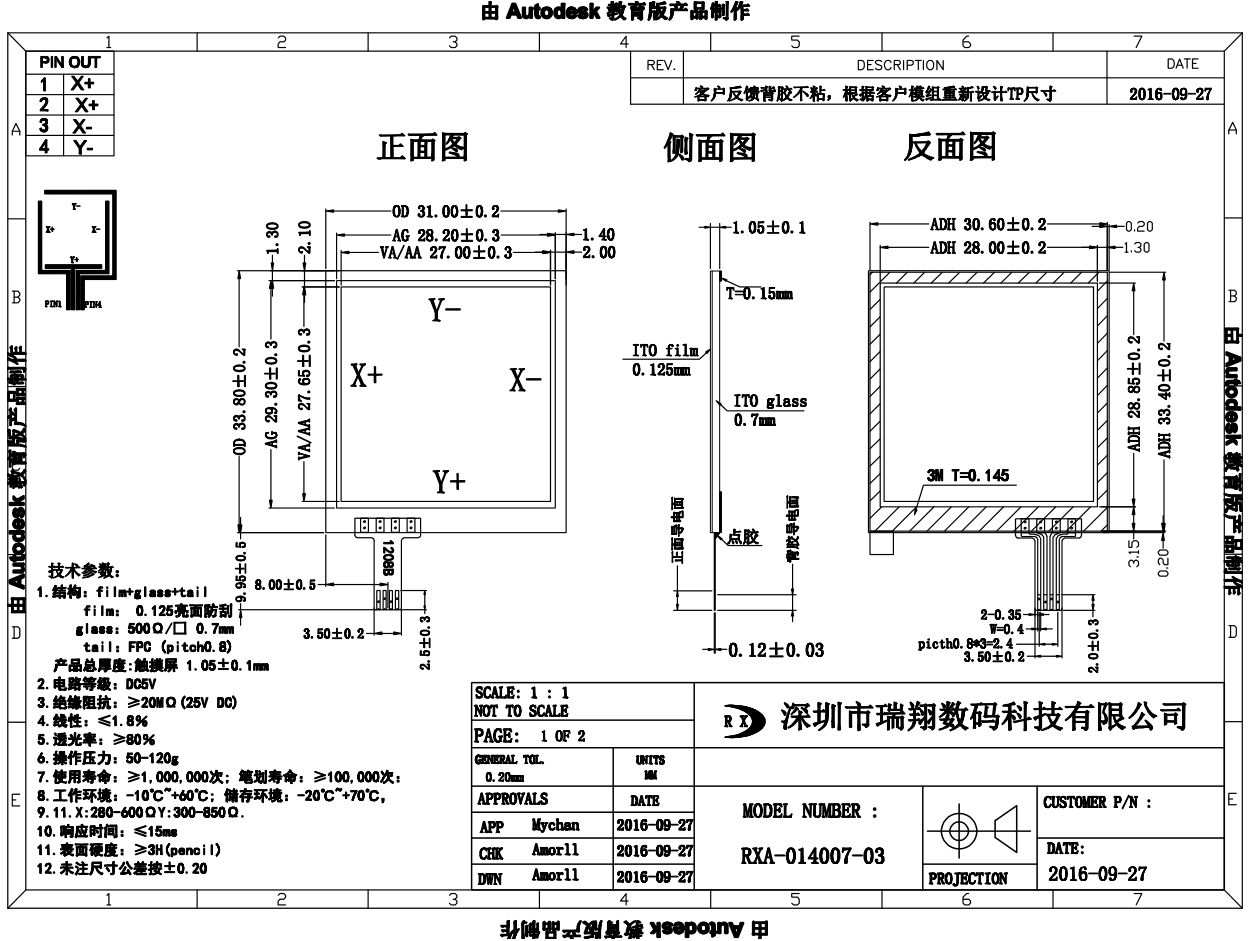

1. Structure: Film+glass+tail
2. Total thickness of resistance screen: 1.05mm
3. Resistance grade: DC5V
4. Insulation impedance: ≥ 20M Ω (25V DC)
5. Linearity: ≤ 1.8%
6. Light transmittance: ≥ 80%
7. Operating pressure: 50-120g
8. Service life of resistance screen: ≥ 1000000; stroke life: ≥ 1000000
9. Working environment: - 10 ° C+60 ° C; Storage environment: - 20 ° C+70 ° C
10.X:280-600Ω   Y:300-850Ω
11. Response time: ≤ 15ms

12.表面硬度：≥3H(铅笔）
