产品介绍
Product introduction
产品参数
Product parameters

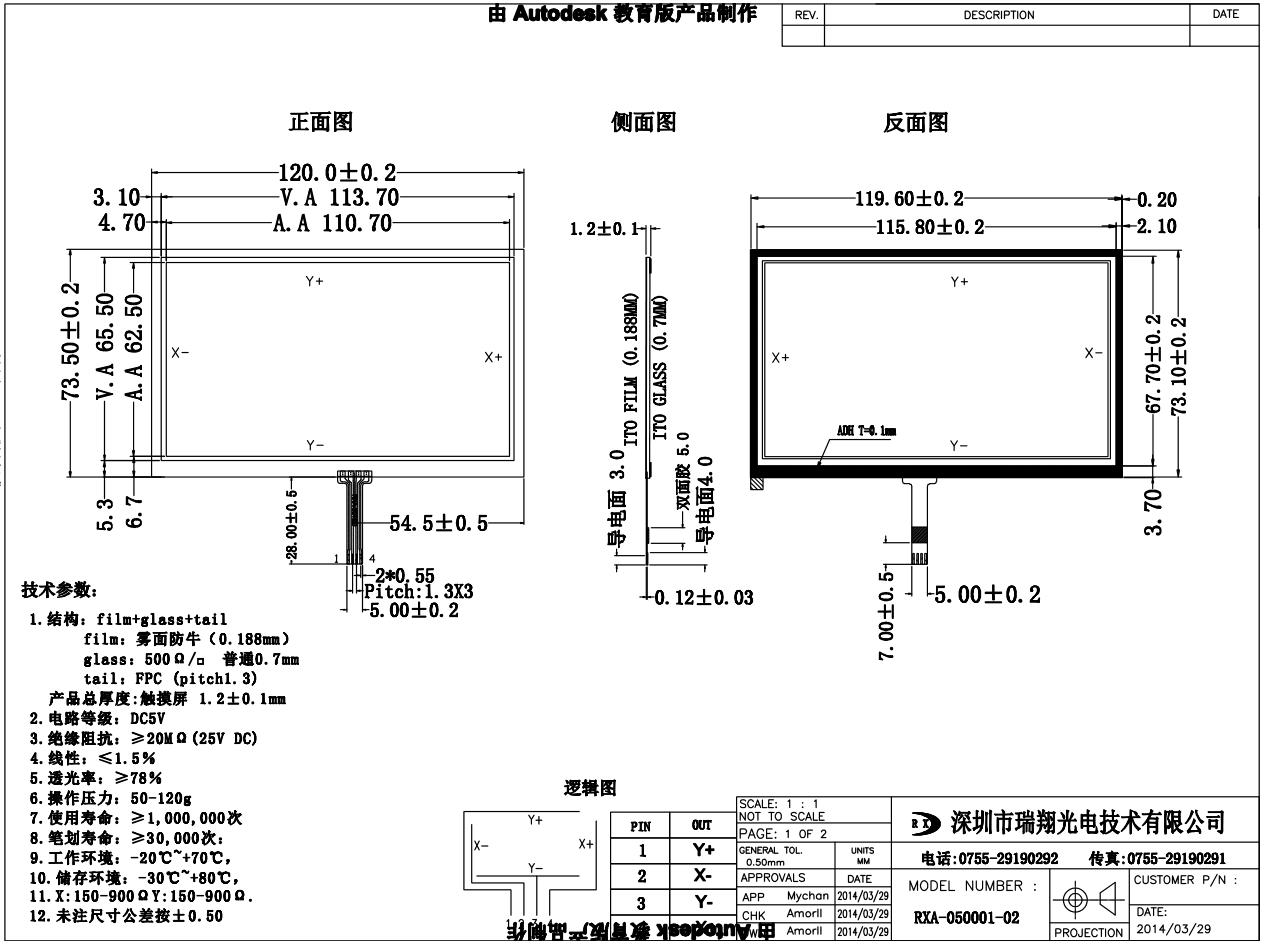

1. Structure: Film+glass+tail
2. Total thickness of resistance screen: 1.2mm
3. Resistance grade: DC5V
4. Insulation impedance: ≥ 20M Ω (25V DC)
5. Linearity: ≤ 1.5%
6. Light transmittance: ≥ 78%
7. Operating pressure: 50-120g
8. Service life of resistance screen: ≥ 1000000 times; Stroke life: ≥ 30000 times
9. Working environment: - 10 ° C+60 ° C; Storage environment: - 20 ° C+70 ° C
10.X:150-900Ω Y:150-900Ω
11. Response time: ≤ 10ms
12.表面硬度：≥3H(铅笔）
