产品介绍
Product introduction
产品参数
Product parameters
Size: 10.1 inches
Resolution: 1280x800

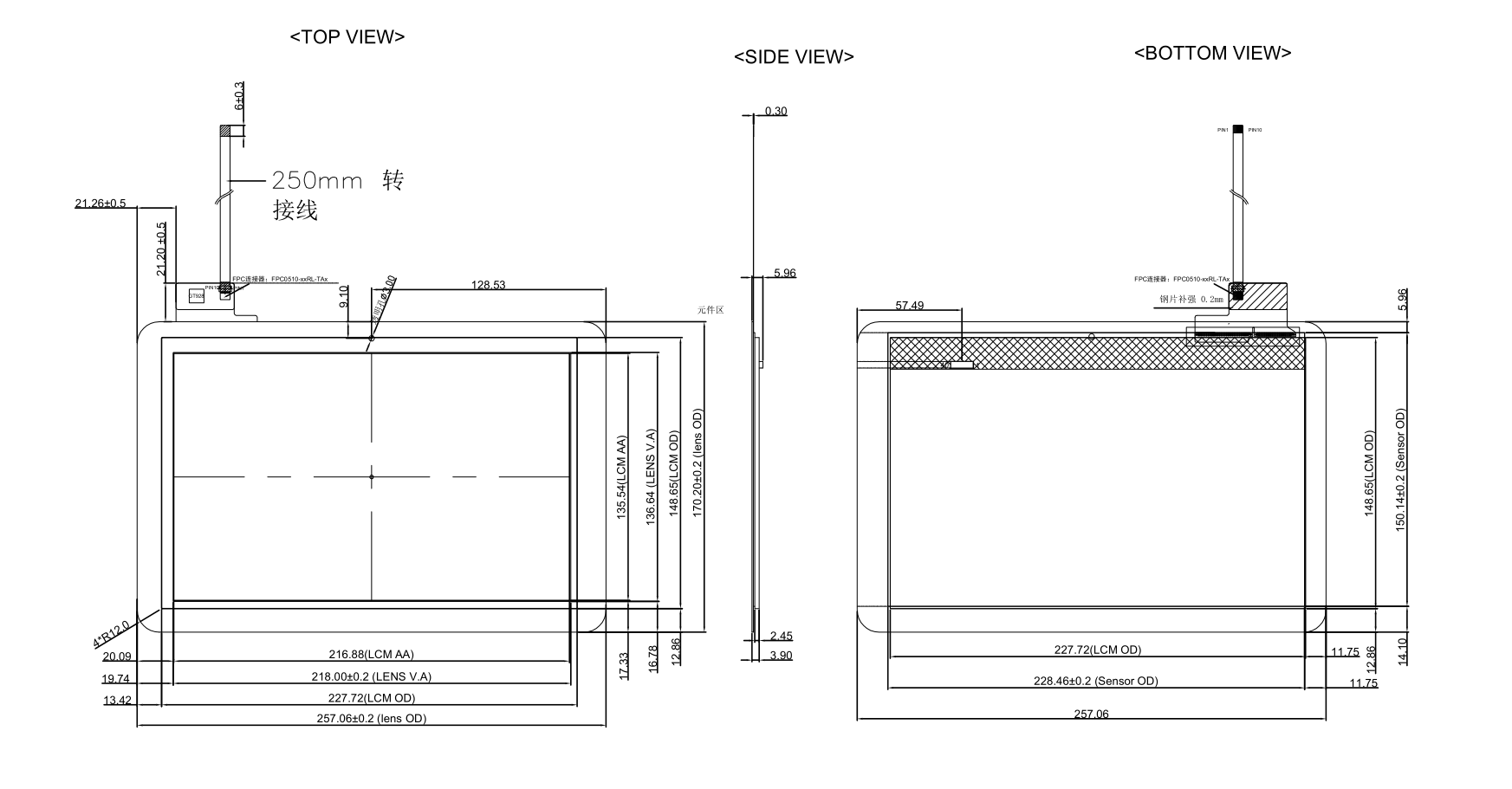

CTP overall dimension: 257.06mm * 170.20mm * 2.5mm
LCD overall size: 228.2mm * 148.95mm * 2.6mm
LCD viewing area: 216.96mm * 135.6mm
LCD interface: LVDS 1-port (8bit)
LCD brightness: 350 nits
Dot/pixel spacing: 0.0565 (H) × RGB × 0.1695(V)
Display mode: normal black
Display screen color: 16.7M (8bit)
Surface treatment: HC
Contrast: 1000:1 (typ.)
CTP drive IC: 928
CTP interface: IIC
Touch point: 10
Angle of view: 80/80/80/80 (typ.)
Response time: 35 (typ.)/40 (max.)
Operating temperature: - 20 ° C~+70 ° C
Storage temperature: - 30 ° C~+80 ° C
Delivery time: samples are in stock; 3-4 weeks of mass production
Support customization: Yes
