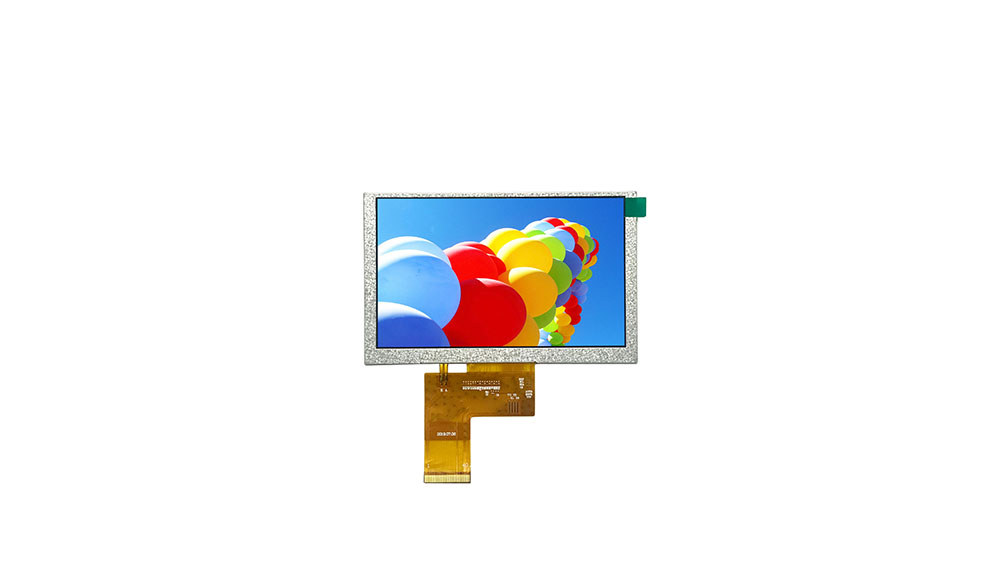

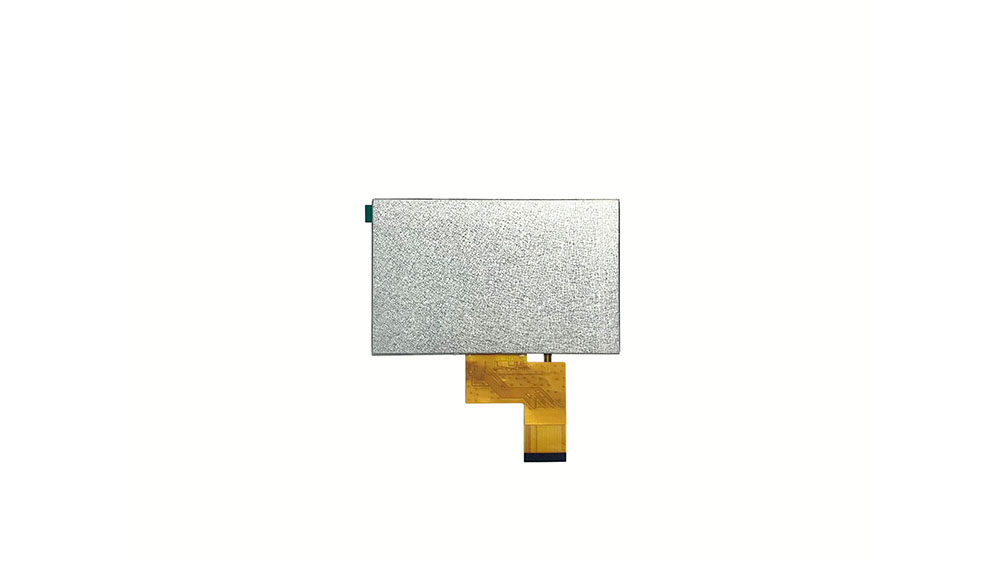

4.3 Lvds

LVDS LCD Display size: 4.3 inch
Part Number:RXL043022-F
Resolution: 800x480
LCD Dimensions: 105.4mm*67.15mm*2.91mm
LCD viewing area: 95.04mm*53.86mm
Interface: LVDS
Brightness: 600 nits
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

LVDS stands for Low Voltage Differential Signaling, and it refers to a signaling technology commonly used in TFT LCD (Thin-Film Transistor Liquid Crystal Display) panels for transmitting data between the display driver and the display itself. An LVDS TFT LCD display utilizes this LVDS technology for data transmission, offering several benefits such as high-speed data transfer, low power consumption, and reduced electromagnetic interference.


LVDS TFT LCD displays have been widely adopted in various industries and applications, where their high-speed data transfer, low power consumption, and reduced electromagnetic interference are advantageous. They offer reliable and efficient display solutions for industrial, medical, professional, and other specialized fields.












Hot tags:4.3 lvds, 4.3 inch tft lcd, 4.3 inch tft lcd display, 4.3 tft lcd, 4.3 tft lcd display, 4.3 tft lcd monitor, tft lcd lvds interface, 4.3 lvds lcd display, 4.3 lvds display, 4.3 lcd display, china, customized, suppliers, factory, manufacturers

LVDS LCD Display size: 4.3 inch

Part Number:RXL043022-F

Resolution: 800x480

LCD Dimensions: 105.4mm*67.15mm*2.91mm

LCD viewing area: 95.04mm*53.86mm

Interface: LVDS

Brightness: 600 nits

Driver IC: ST7262

Dot/pixel pitch: 0.0565(H)×RGB×0.1695(V)

Display Mode: Normal Black

Display color: 16M

Surface treatment: HC

Contrast: 1200:1 (typ.)

Angle of view: 80/80/80/80(typ.)

Working temperature: -30°C~+85°C

Storage temperature: -30°C~+85°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes
